High Lumen Led Ceiling Light

Contact Inquiry PDF Download

FEATURE
SPECIFICATION

Model No.	Power	LED Q'ty	Lumen	Colour	Product	LF	Q'ty/CTN	Carton Size (mm)
Model No.	Consumption	LED Q'ty	Lumen	Temperature	Size(mm)	(mm)	(PCS)	Carton Size (mm)
JFC220TA	12W	72PCS	1200	2700-6500K	φ220×50	59	12	475×245×345
JFC280TA	18W	110PCS	1800		φ280×50	122	12	595×305×345
JFC330TA	24W	154PCS	2400		φ330×50	140	10	695×355×290
JFC220TB	12W	72PCS	1200		220×220×50	59	12	475×245×345
JFC280TB	18W	110PCS	1800		280×280×50	122	12	595×305×345
JFC330TB	24W	154PCS	2400		330×330×50	140	10	695×355×290

Product description
. Input Voltage:AC220-240V or AC100-277V，50/60Hz.
. IP Rating:IP54，Class:l.
. Driver:constant current LED driver
. Housing:Polycarbonate material,high impact resistant,IK08.
. GWT 850 degrees,white or black color for your option.
. Diffuser:Polycarbonate material,high impact resistant,IK08
. GWT 850 degrees,UV protection.

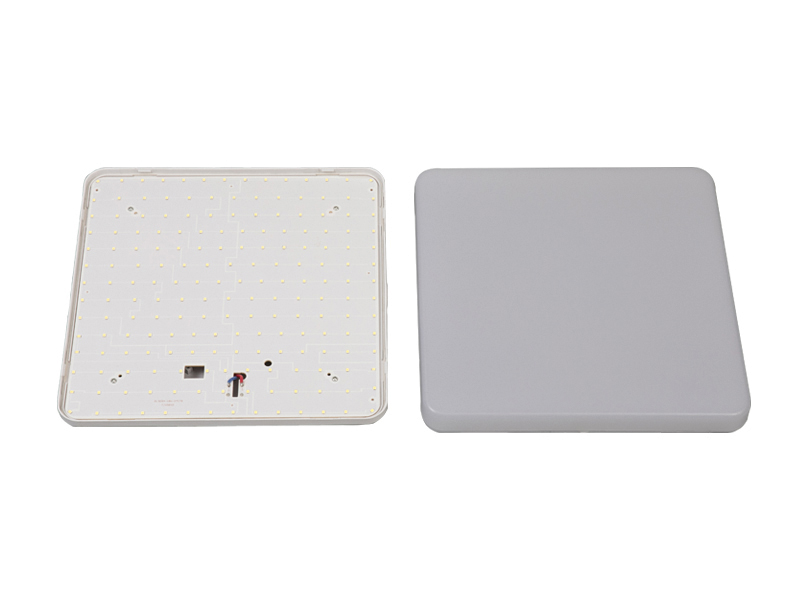

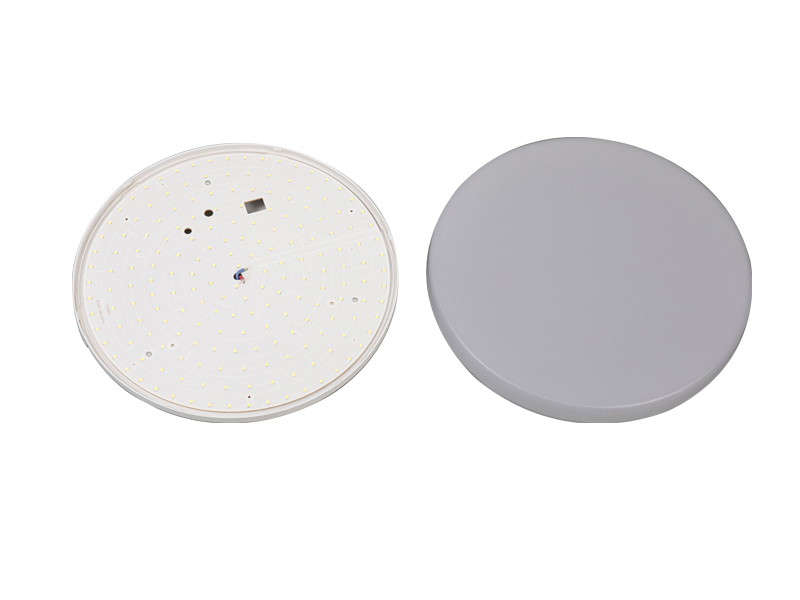

. High temperature resistant PCB for SMD LED
. Natural silicon gel gasket,ensure waterproof and dustproof
. With cable gland for the good waterproof function.
. Quick wiring system,save ihstallation time,save money

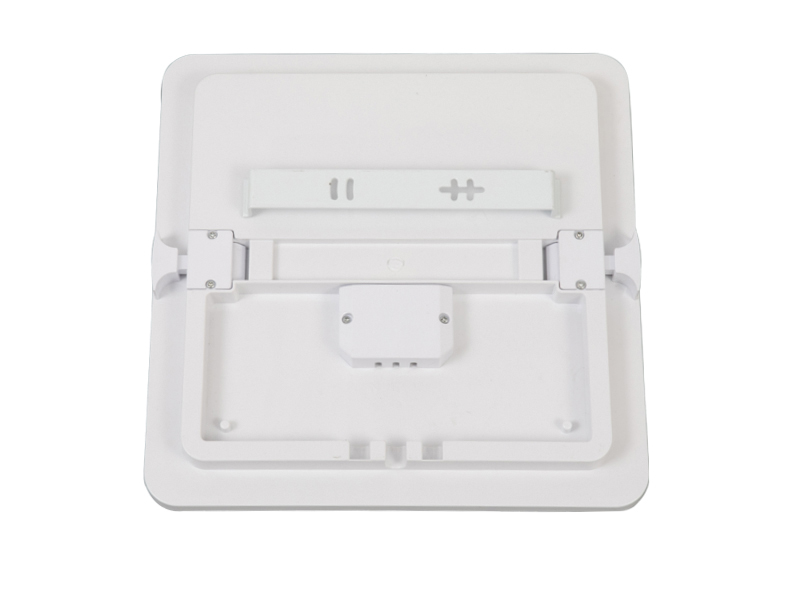

. Easy and quick installation under ceiling or wall-mounted.
. Warranty: 3 years
. It could be fitted with sensor and emergency function.
. Suitable for corridor,underground parking,warehouse,etc.
