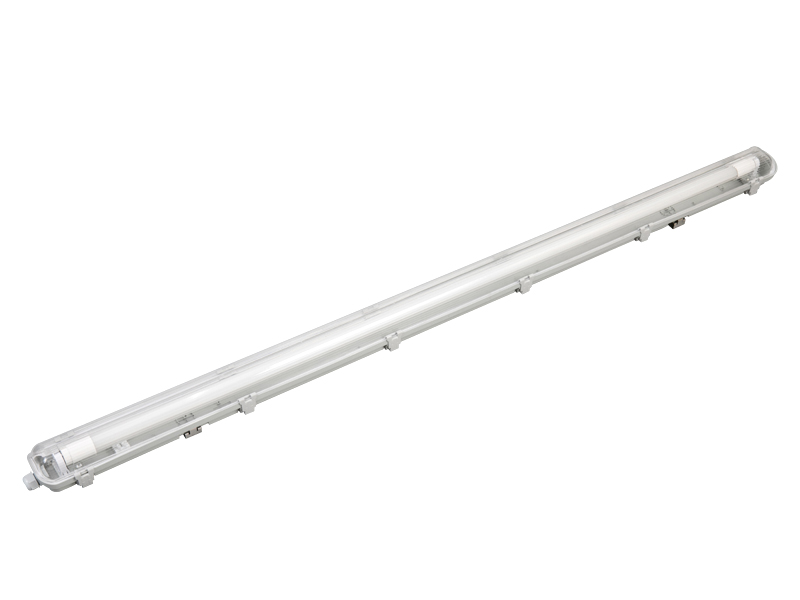

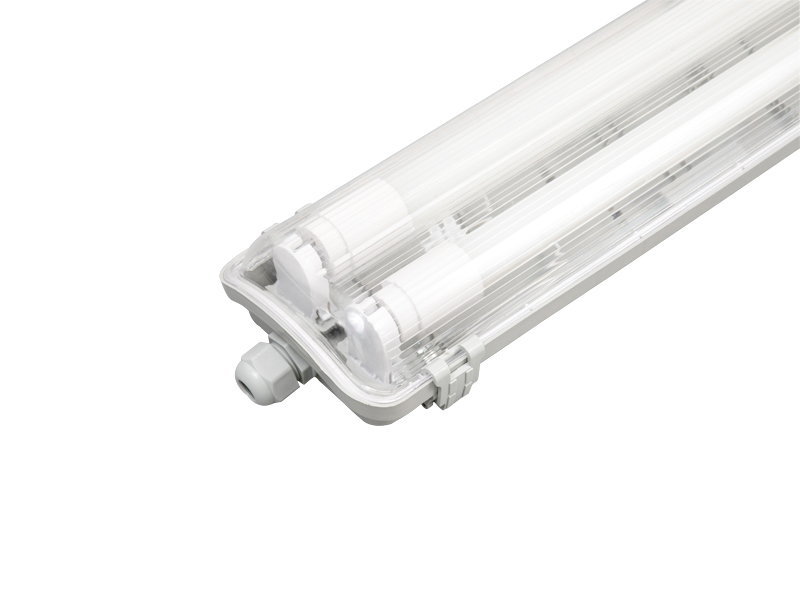

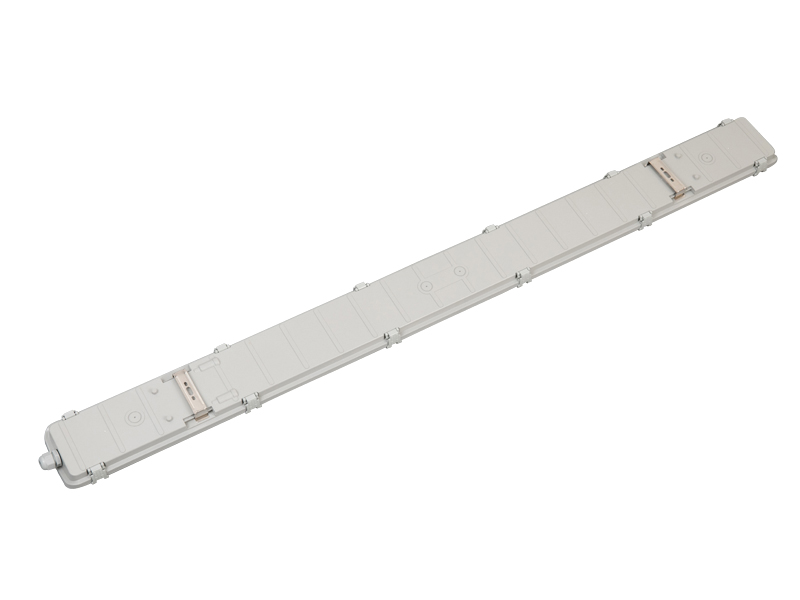

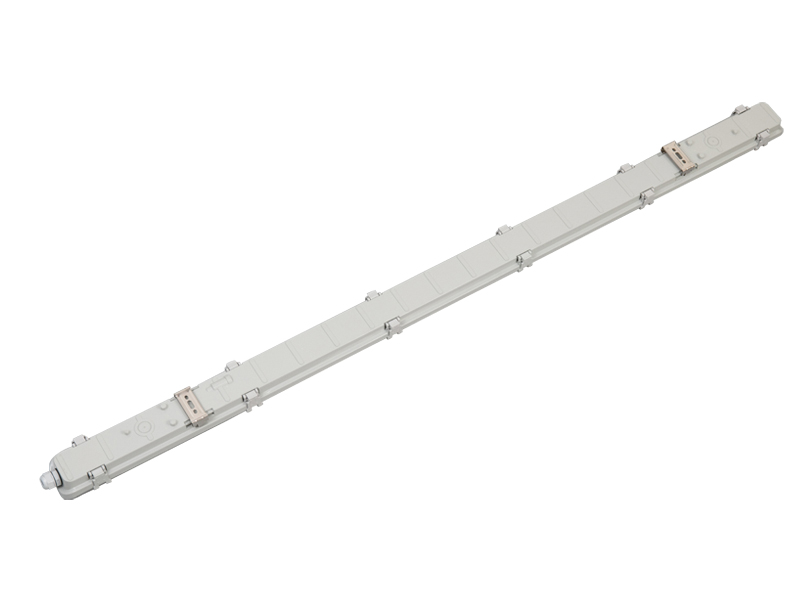

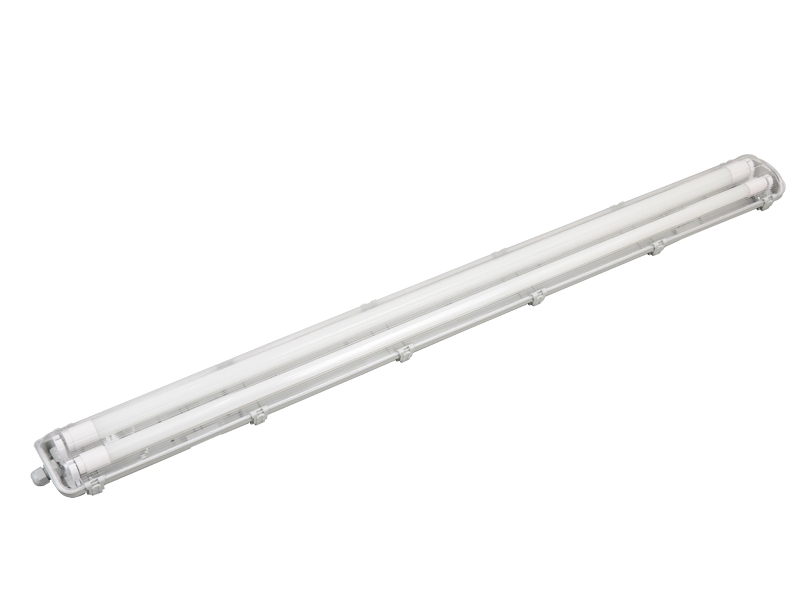

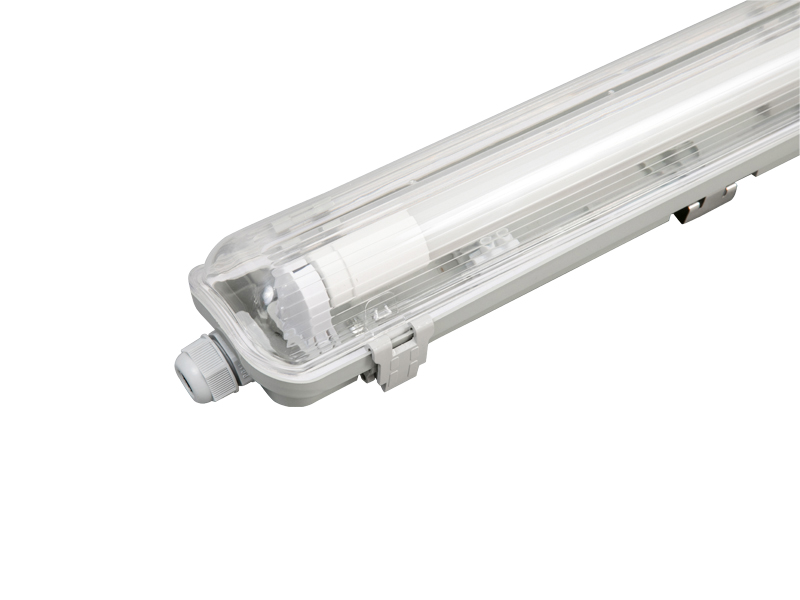

JF2 IP65 Tri-proof light

0
Views: 129
Contact Inquiry PDF Download
  • Model No. Max watt (W) Clips Q'ty (PCS) Product Size         L×W×H(mm) LF(mm) Q'ty/CTN (PCS) Carton Size (mm)
    JF2118 1X18W T8 6 670×70×60 340-415 15 700×320×240
    JF2218 2X18W T8 6 655×110×58 340-415 10 690×320×250
    JF2136 1X36W T8 12 1282×70×60 790-865 15 1300×320×240
    JF2236 2X36W T8 12 1267×110×58 790-865 10 1290×320×250
    JF2158 1X58W T8 14 1580×70×60 975-1050 15 1600×320×240
    JF2258 2X58W T8 14 1565×110×58 975-1050 10 1590×320×250




    Product description
    Housing: Injection moulded, high mechanical resistant, self-extinguishing. RAL7035 light grey polycarbonate; (ABS for option )
    Diffuser Injection moulded. V0 self-extinguishing,UV stabilised transparent polycarbonate, prismatic inside for better light control
    Reflector: high quality iron sheet with white power coating
    Lampholder: T8-G13. Polycarbonate and High quality copper material; tube rotation protection; VDE and ENEC certified
    Terminal block : 3poles screw type, or 3poles screwless type; (5poles for option )
    Clip: Polycarbonate clips or Stainless clips for option;
    Mounting bracket: Stainless brackets;
    lnstallation:Easy and quick to install under ceiling or on surface.
    Hanger:Plastic gear tray holder connected to the housing for easy maintenace
    Accessory bag: Rubber grommet, PG13.5 cable gland, expansion pipe and screws
    Applications:Approved for indoor use or outdoor use which need waterproof,dustproof and moistureproof
    Friendly reminder:
    1) must not be installed on surfaces subject to strong vibratioins; must not be installed
    2) when using PC diffuser, don't use moderately to strong alkaline or acidic material or solvents or cleaning agents which attack PC material
    3) special enviroment using, pis contact us
