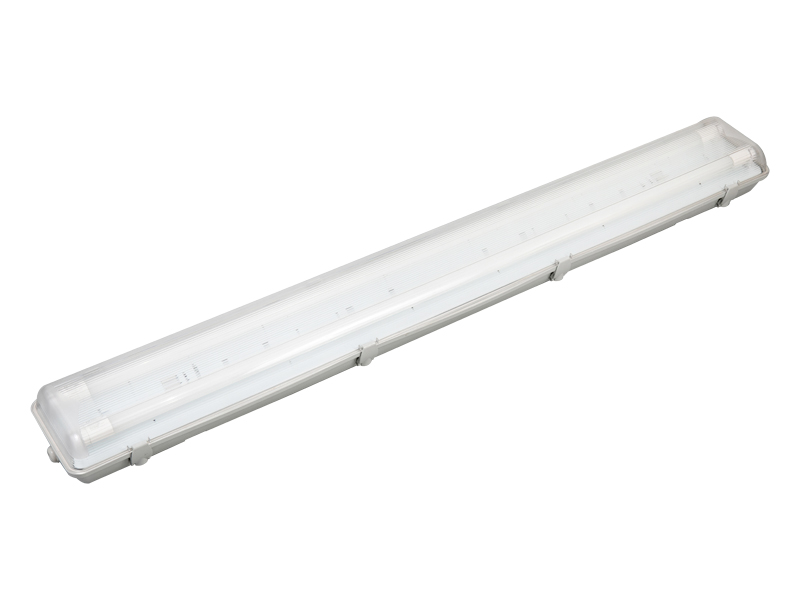

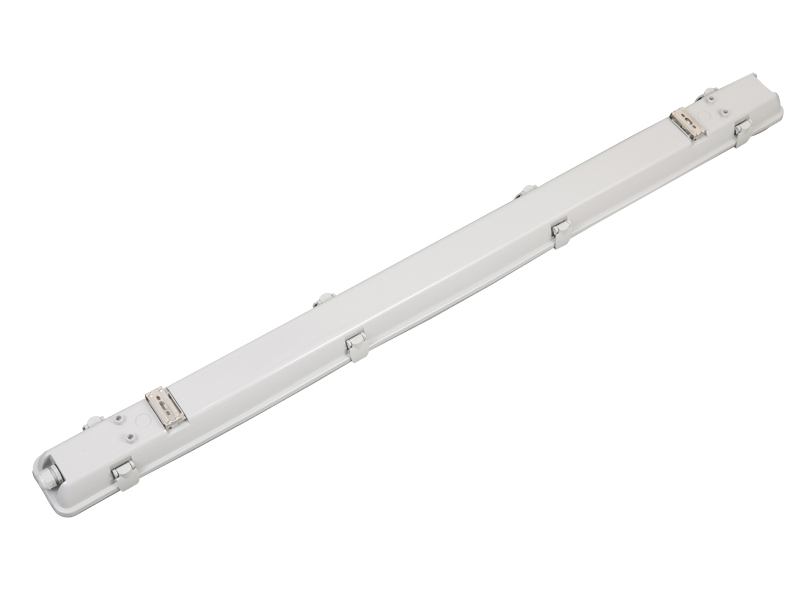

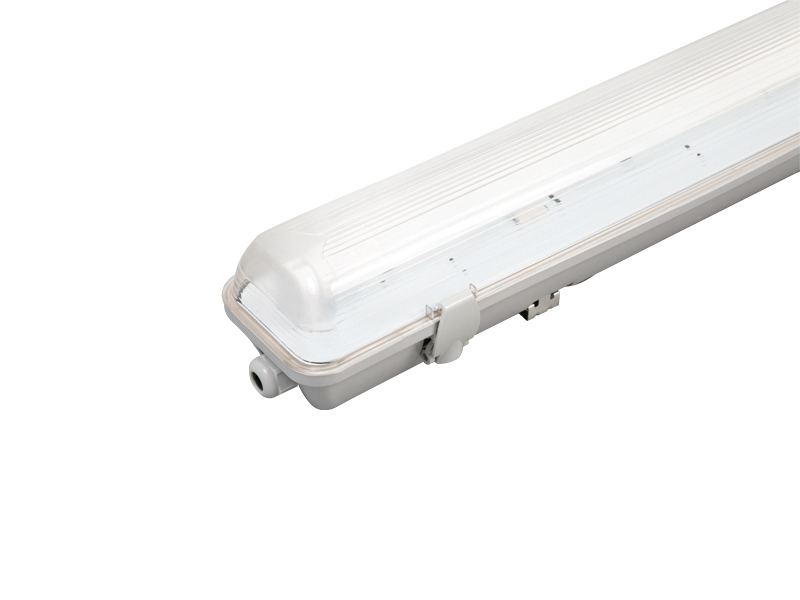

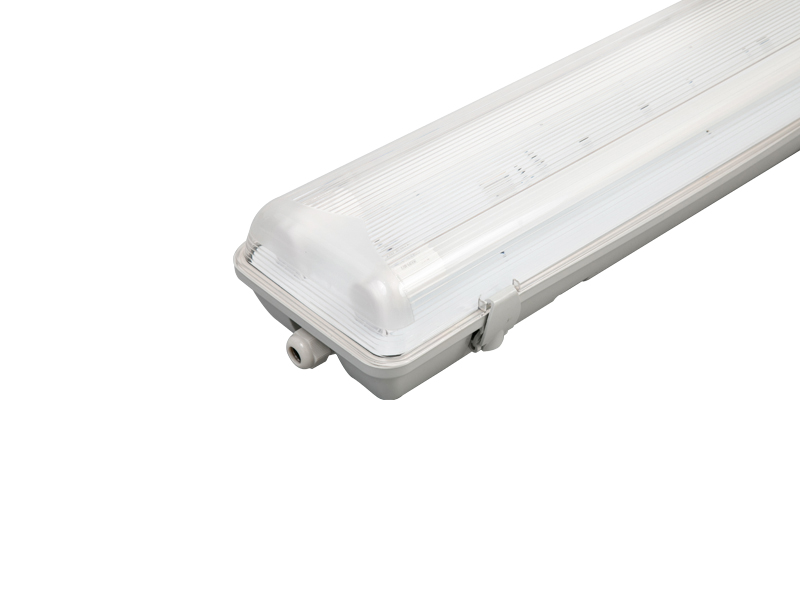

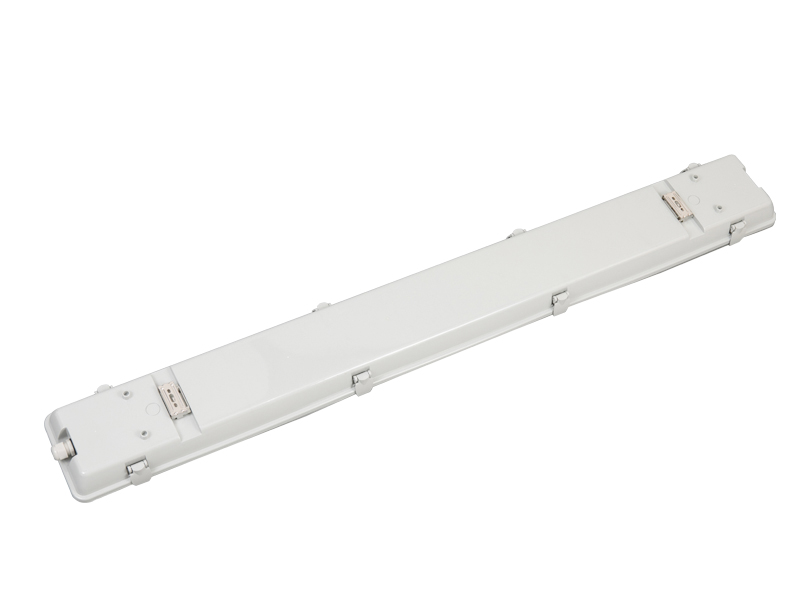

JF3 IP65 Tri-proof light

0
Views: 95
Contact Inquiry PDF Download
  • <table

    Model No. Max watt (W) Clips Q'ty (PCS) Product Size         L×W×H(mm) LF(mm) Q'ty/CTN (PCS) Carton Size (mm)
    JF3118 1X18W T8 6 670×100×110 400 10 690×225×375
    JF3218 2X18W T8 6 670×160×110 400 8 690×345×305
    JF3136 1X36W T8 8 1270×100×110 900 6 1290×225×235
    JF3236 2X36W T8 8 1270×160×110 900 4 1290×180×305
    JF3158 1X58W T8 10 1570×100×110 965 6 1590×225×235
    JF3258 2X58W T8 10 1570×160×110 965 4 1590×180×305

    Product description
    Housing: Injection moulded, high mechanical resistant, self-extinguishing. RAL7035 light grey polycarbonate; (ABS for option )
    Diffuser Injection moulded. VO self-extinguishing,UV stabilised transparent polycarbonate, prismatic inside for better light control
    Reflector: high quality iron sheet with white power coating
    Lampholder: T8-G13. Polycarbonate and High quality copper material; tube rotation protection; VDE and ENEC certified
    Terminal block : 3poles screw type, or 3poles screwless type; (5poles for option )
    Clip: Polycarbonate clips or Stainless clips for option;
    Mounting bracket: Stainless brackets;
    lnstallation:Easy and quick to install under ceiling or on surface.
    Hanger:Plastic gear tray holder connected to the housing for easy maintenace
    Accessory bag: Rubber grommet, PG13.5 cable gland, expansion pipe and screws
    Applications:Approved for indoor use or outdoor use which need waterproof,dustproof and moistureproof
    Friendly reminder:
    1) must not be installed on surfaces subject to strong vibratioins; must not be installed
    2) when using PC diffuser, don't use moderately to strong alkaline or acidic material or solvents or cleaning agents which attack PC material
    3) special enviroment using, pis contact us
