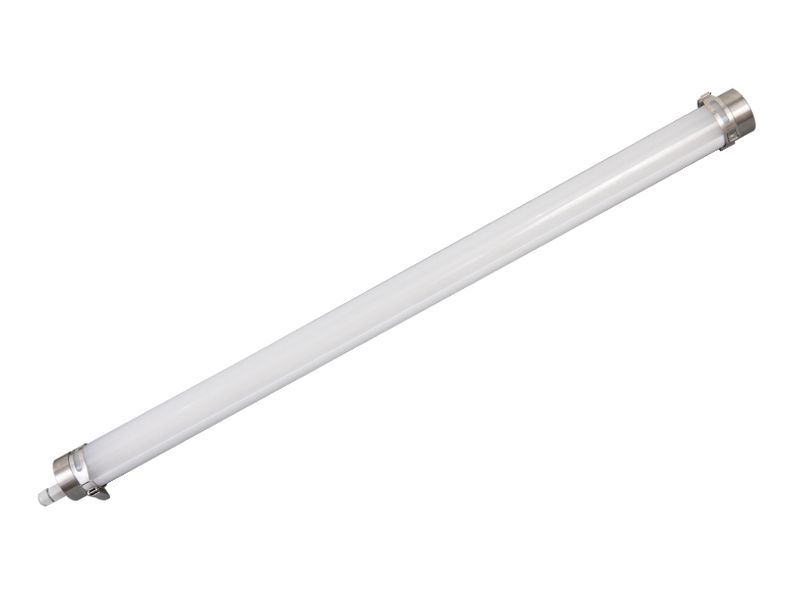

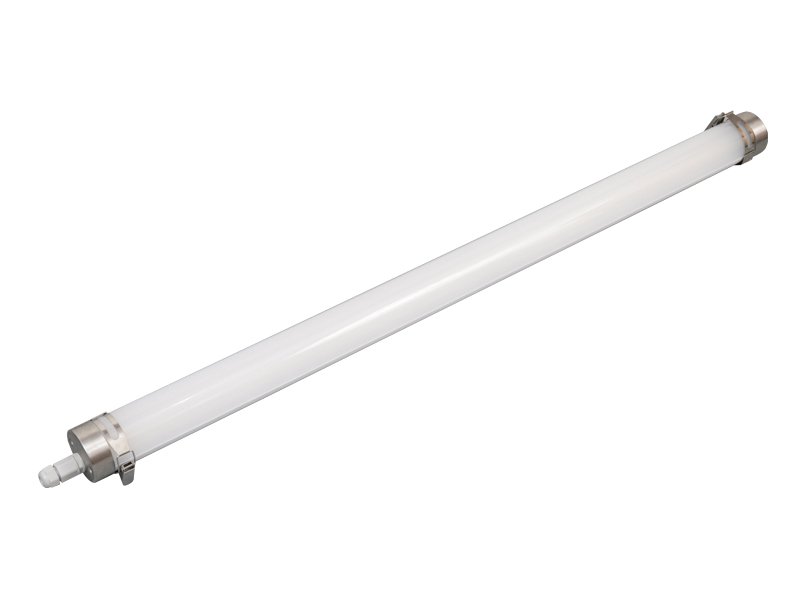

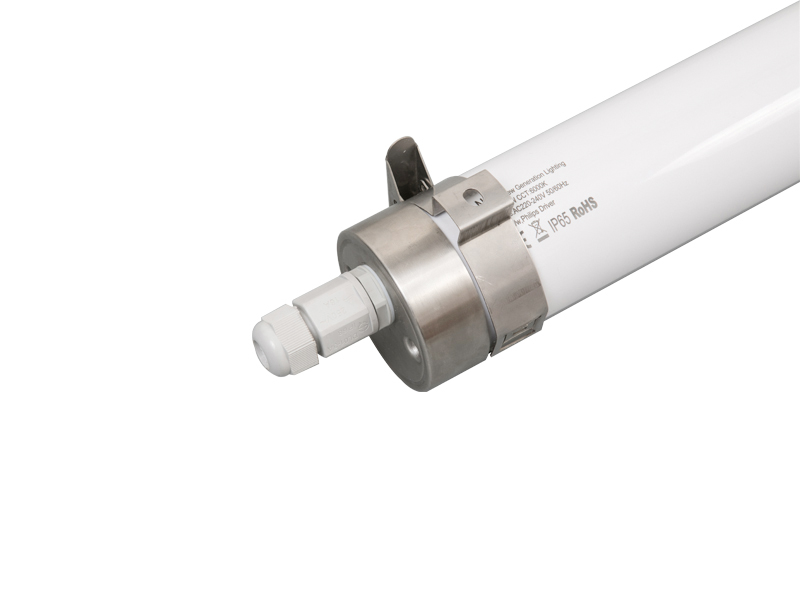

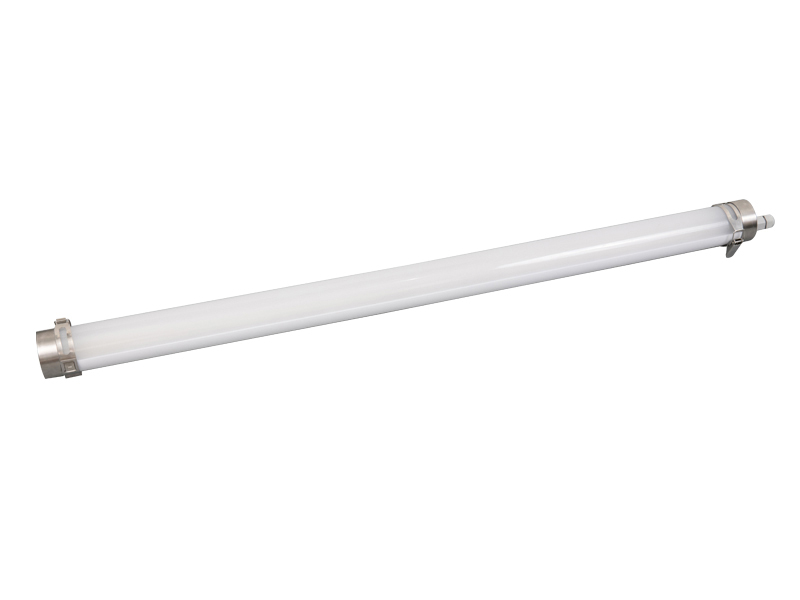

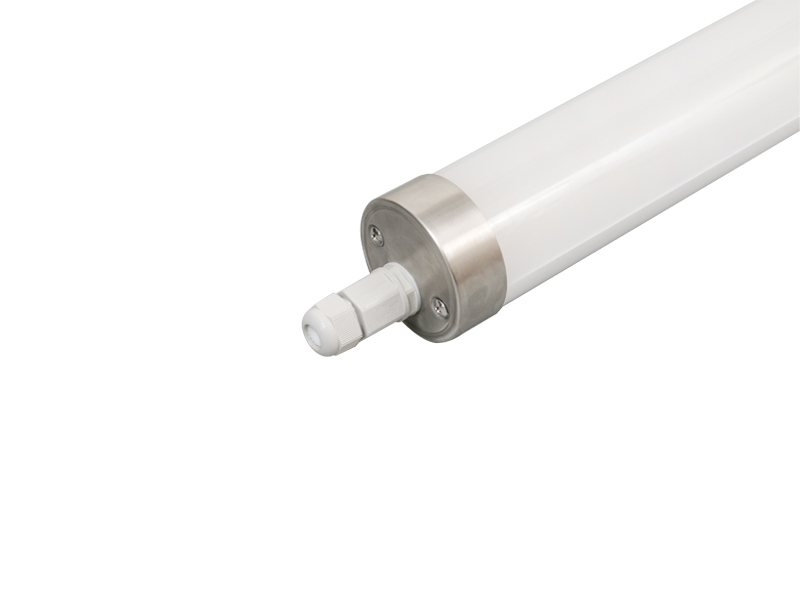

JFY IP65 Tri-proof light

1+
Views: 148
Contact Inquiry PDF Download
  • Model No. Total LED Qty Ra Diffuser type Lumen Colour Product Size LF Qty/CTN Carton Size (mm)
    Power SMD2835-0.2W Temperature L×φ(mm) (mm) (PCS)
    JFY060 20W 126 Ra>80 Opal 2150 2700-6500K 600×φ75 360-410 6 650×190×275
    JFY120 40W 252 Ra>80 Opal 4300 1200×φ75 790-860 6 1250×190×275
    JFY150 60W 364 Ra>80 Opal 6450 1500×φ75 910-980 6 1550×190×275



    Product description:
    .Voltage: AC220-240V or AC100-277V,50/60Hz
    .IP Rate:IP65 Class I
    .Housing:lnjection moduled.high mechanical resistant ,RAL7035 light grey polycarbonate.
    .Diffuser:Injection moduled,UV stabilised transparent polycarbontate.opal or transparent diffuser.

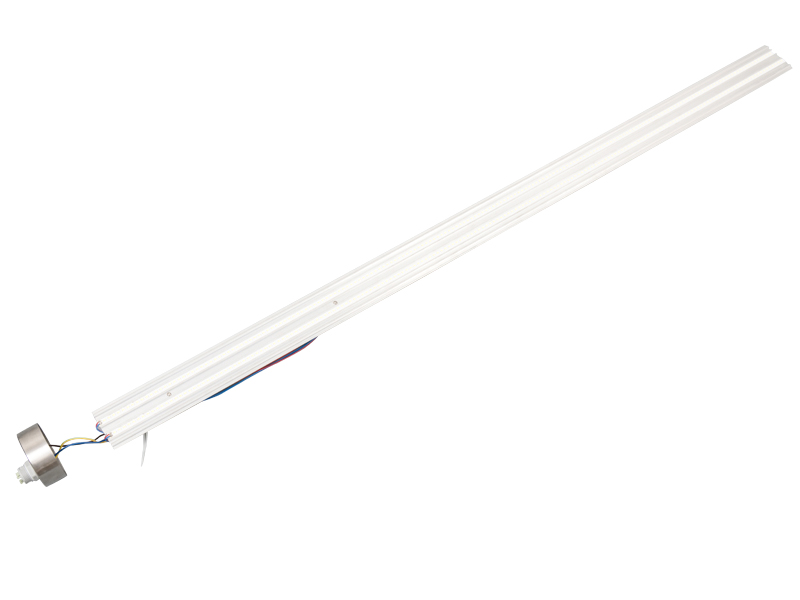

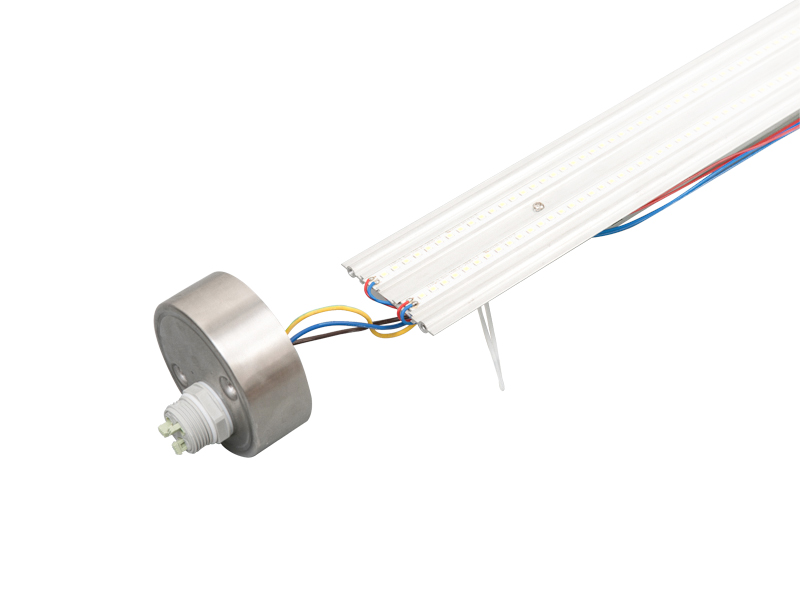

    .Reflector:iron plate + Aluminum PCB
    .LED Driver: TRIDONIC OSRAM BOKE brand constant current LED driver.
    .LED:SMD2835 SAMSUNG Bridgelux Epistar for options
    .Ra:>80
    .Mounting bracket:Stainless brakcets
    .lnstallation:Easy and quick to install under ceiling or on surface
    .Accessary bag:Rubber gromment,PG13.5 cable gland,expansion pipe and screws
    .Lifetime:50,000h
    Applications:Approved for indoor use or outdoor use where need waterproof ,dustproof and moistureproof
    Friendly reminder:
    1 )must not be installed on surface subject to strong vibrations
    2) When using PC diffuser,don't use moderately to strong alkaline or acidic material or solvents or cleaning agents which attack PC material
    3) special environment using,pis contact us
