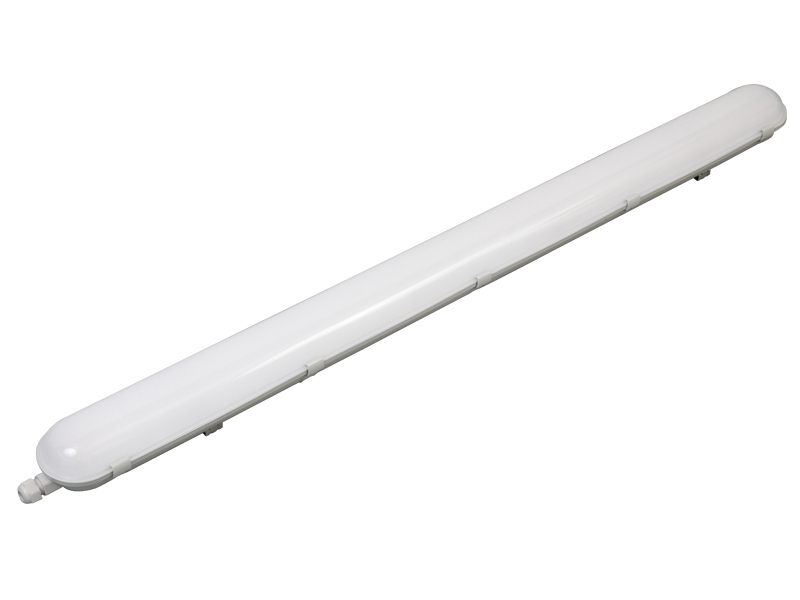

JF IP65 LED water proof lamp with sensor and emergency kit

Views: 234
Contact Inquiry PDF Download

    Model No. Total LED Qty Ra Diffuser type Lumen Colour Product Size LF Qty/CTN Carton Size (mm)
    Power SMD2835-0.5W Temperature L×W×H(mm) (mm) (PCS)
    JF060 20W 78 Ra>80 Opal 2100 2700-6500K 600×100×75 360-410 8 635×220×320
    JF120 40W 130 Ra>80 Opal 4200 1200×100×75 800-870 8 1235×220×320
    JF150 60W 216 Ra>80 Opal 6300 1500×100×75 910-980 8 1535×220×320

    Product description:
    .Voltage: AC220-240V or AC100-277V,50/60Hz
    .IP Rate:IP65 Class I
    .Housing:lnjection moduled.high mechanical resistant ,RAL7035 light grey polycarbonate.
    .Diffuser:Injection moduled,UV stabilised transparent polycarbontate.opal or transparent diffuser.
    .Reflector:iron plate + Aluminum PCB
    .LED Driver: TRIDONIC OSRAM BOKE brand constant current LED driver.
    .LED:SMD2835 SAMSUNG Bridgelux Epistar for options
    .Mounting bracket:Stainless brakcets
    .lnstallation:Easy and quick to install under ceiling or on surface
    .Accessary bag:Rubber gromment,PG13.5 cable gland,expansion pipe and screws
    Applications:Approved for indoor use or outdoor use where need waterproof ,dustproof and moistureproof
    Friendly reminder:
    1 )must not be installed on surface subject to strong vibrations
    2) When using PC diffuser,don't use moderately to strong alkaline or acidic material or solvents or cleaning agents which attack PC material
    3) special environment using,pis contact us
